The Petzl Pro Traxion pulley is engineered for professional use in hauling systems, allowing quick rope installation even when attached to an anchor. Its triple-action opening side plate is glove-friendly, ensuring ease of use in challenging environments. The integrated swivel aids in proper orientation under load, while the cam lock feature enables conversion into a standard pulley when necessary.
About This Item
The Petzl Pro Traxion High Efficiency Progress Capture Pulley is built for demanding hauling systems where efficiency and safety are paramount. Its standout feature, the triple-action opening side plate, allows users to install the rope without detaching the pulley from the anchor—making setups quicker and safer. The sealed ball bearings and large sheave diameter ensure a 95% efficiency rate, ideal for lifting heavy loads with ease.

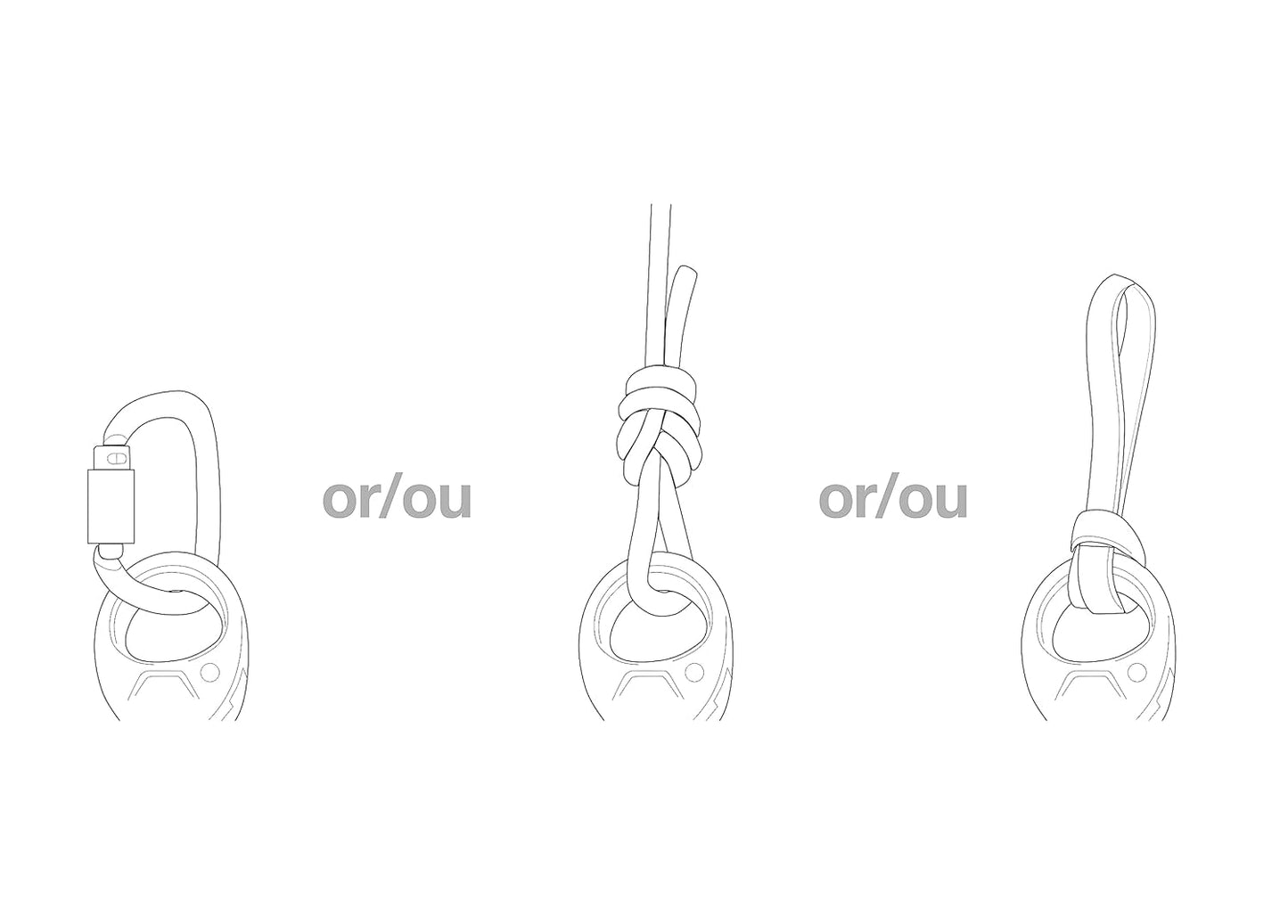

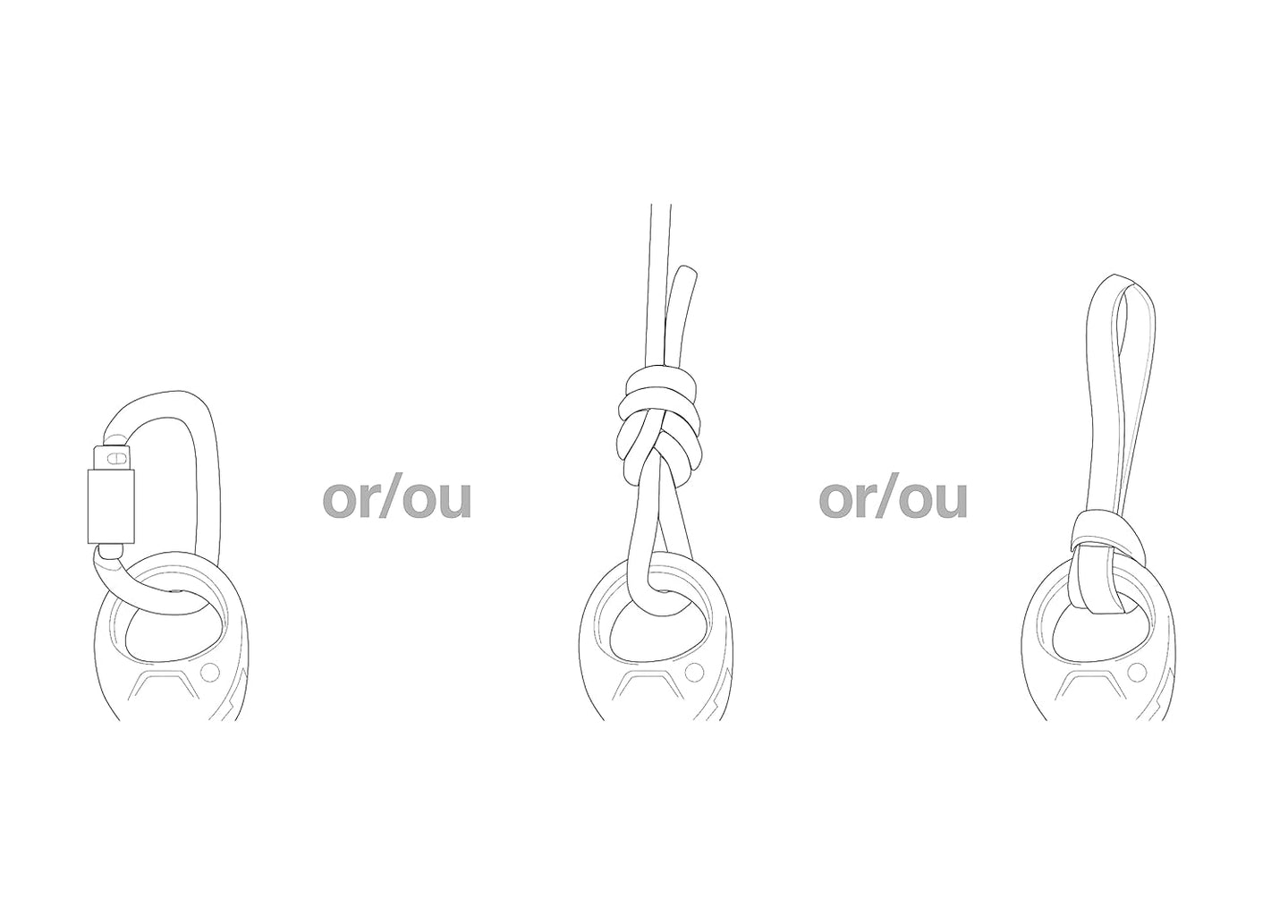

The integrated swivel and auxiliary attachment point improve rigging flexibility, allowing direct connections with carabiners, ropes, or slings. When the cam is locked in the raised position, the Pro Traxion serves as a regular pulley, enhancing its versatility in various rigging scenarios. Whether you’re working in rescue operations or industrial settings, this pulley offers reliability and user-friendly features that professionals demand.
Item Full Specifications
Product Dimensions: 7.09 x 3.54 x 1.57 inches
Weight: 11.64 ounces (295 g)
Efficiency: 95%
Breaking Strength:
Pulley: 23 kN
Rope Clamp: 4 kN
Sheave Type: Sealed ball bearings
Sheave Diameter: 38 mm
Rope Diameter Compatibility: 8 mm – 13 mm
Material(s): Aluminum, stainless steel, nylon
Item Model Number: P055AA00
Certification(s):
CE EN 567
CE EN 12278
CE EN 12841 Type B
UKCA
NFPA 2500 (Technical Use Pulley and Rope Grab)
Manufacturer: Petzl
Date First Available: July 12, 2023
Guarantee: 3 years
Inner Pack Count: 1
Price: $209.95
References
Item Model Number: P055AA00
Certifications: CE EN 567, CE EN 12278, CE EN 12841 Type B, UKCA, NFPA 2500
Manufacturer: Petzl
Guarantee: 3 years
Frequently Asked Questions (FAQs)
What rope sizes are compatible with the Petzl PRO TRAXION?
This pulley works with ropes between 8 mm and 13 mm in diameter, making it suitable for heavy-duty hauling, rescue, and rope access work.
What is the load capacity and breaking strength?
The working load is up to 5 kN (2.5 kN per rope strand), and the breaking strength is around 23 kN, providing high durability and safety in demanding situations.
How efficient is this pulley?
It offers up to 95% efficiency due to its sealed ball bearings and large sheave, which ensures smooth operation and reduces friction during hauling.
What safety and usability features does it have?
It includes a progress-capture cam that can lock the rope during hauling or be disabled when needed. The side plate opens even when under load and has a red safety indicator. The built-in swivel helps with proper alignment and prevents rope twisting.
Is the PRO TRAXION certified and built to last?
Yes, it weighs approximately 265 to 295 grams and is made from durable aluminum, stainless steel, and nylon. It meets several safety standards, including CE, NFPA, and UKCA certifications.
